Description

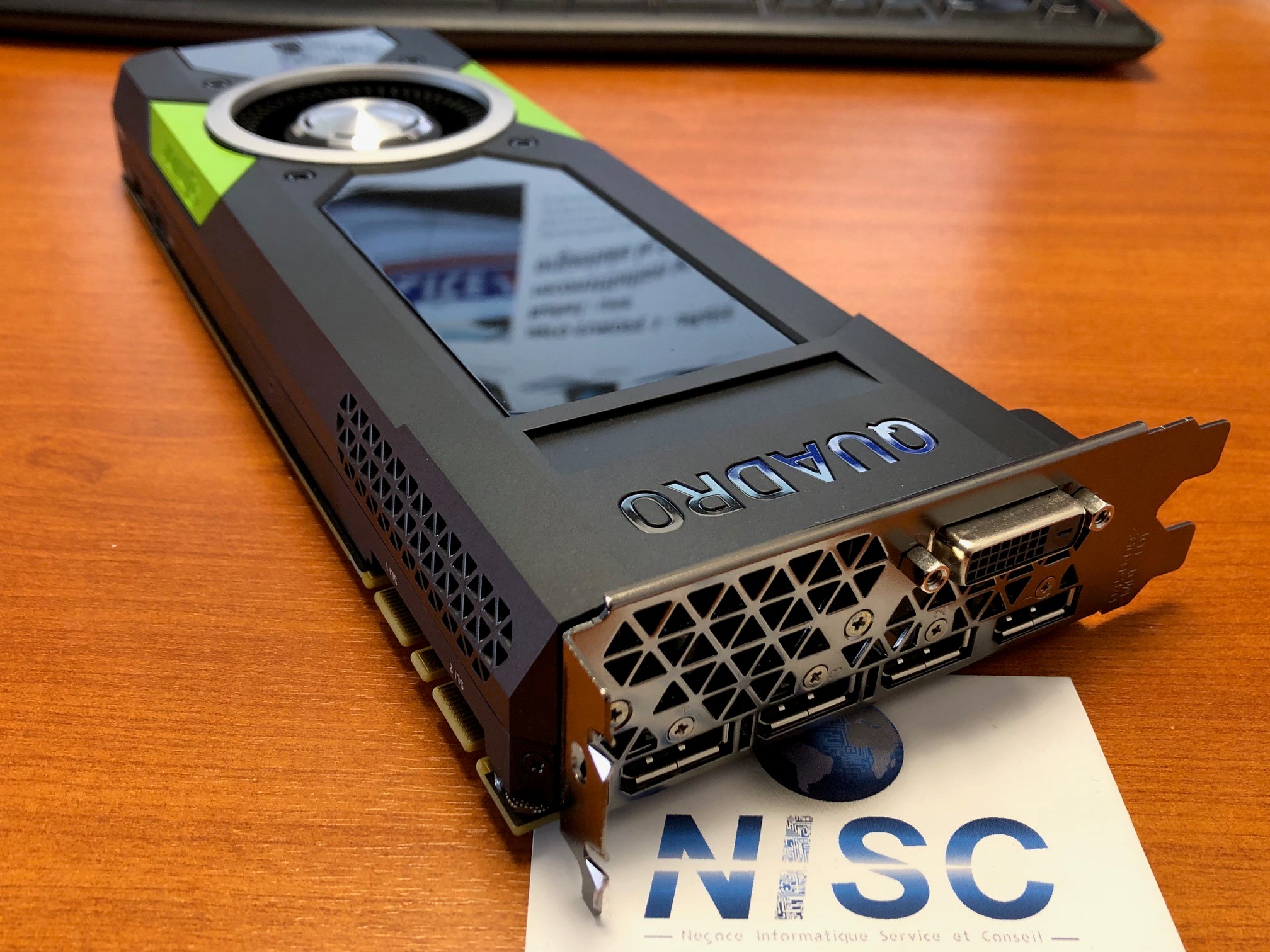

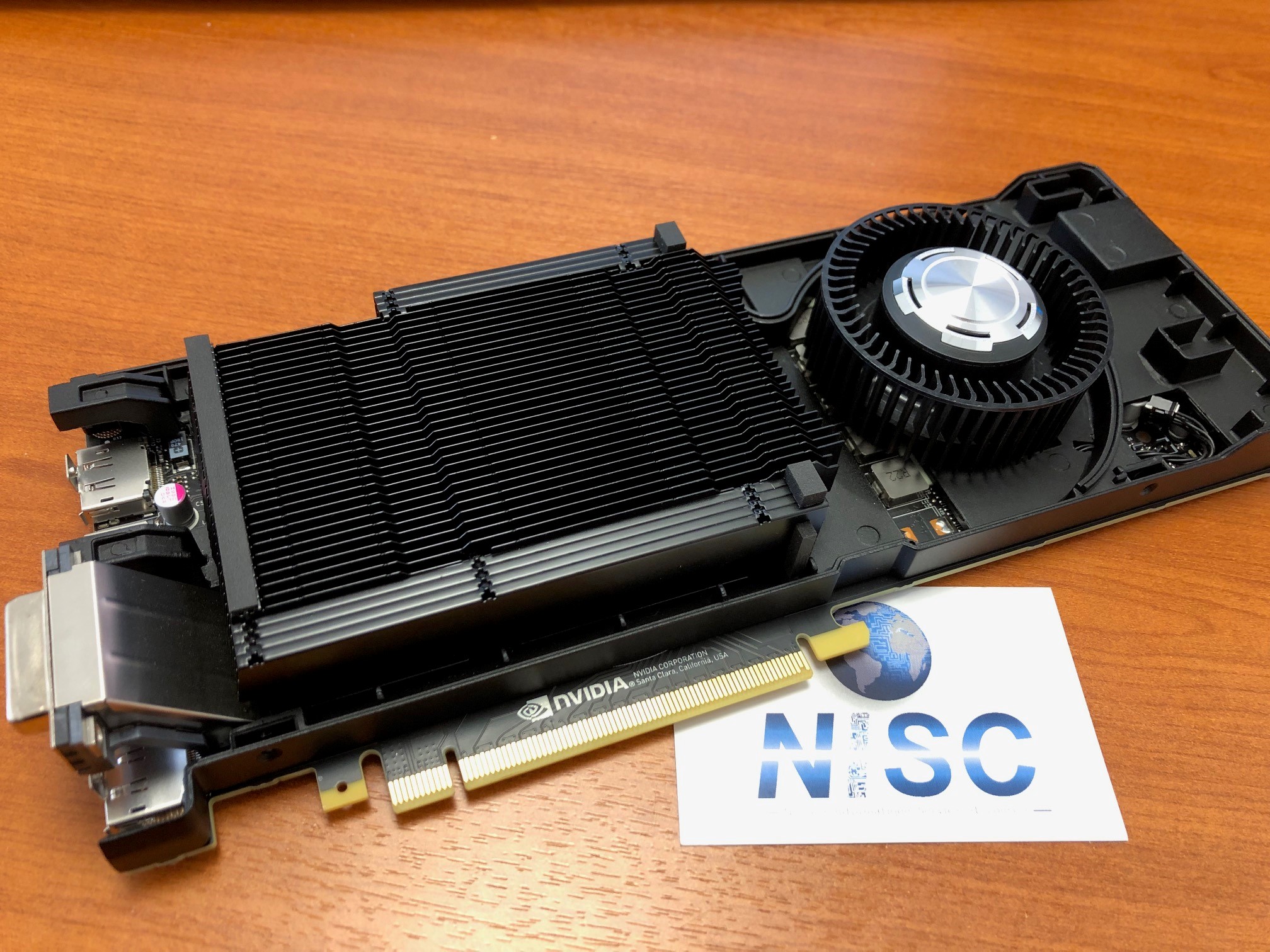

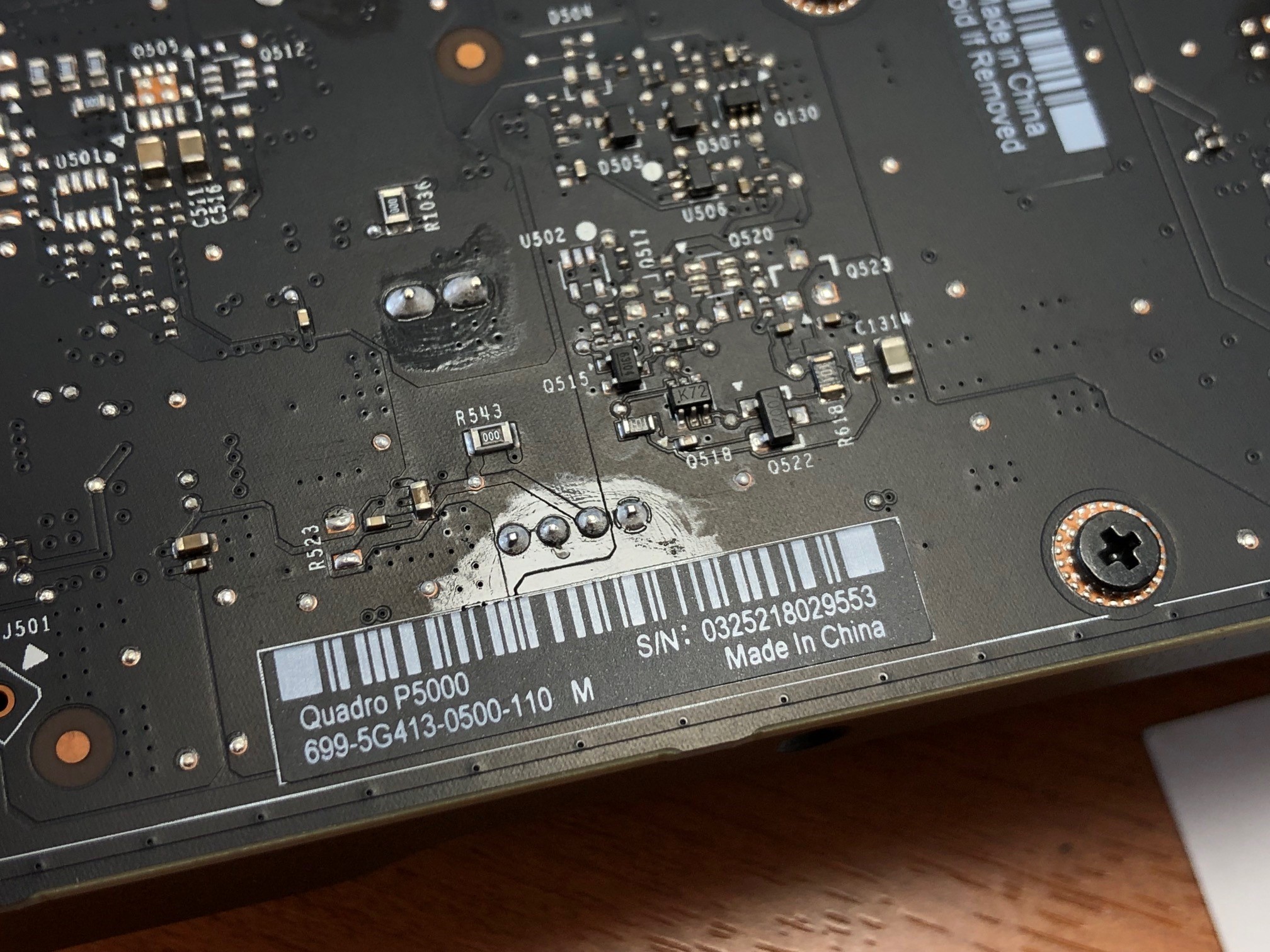

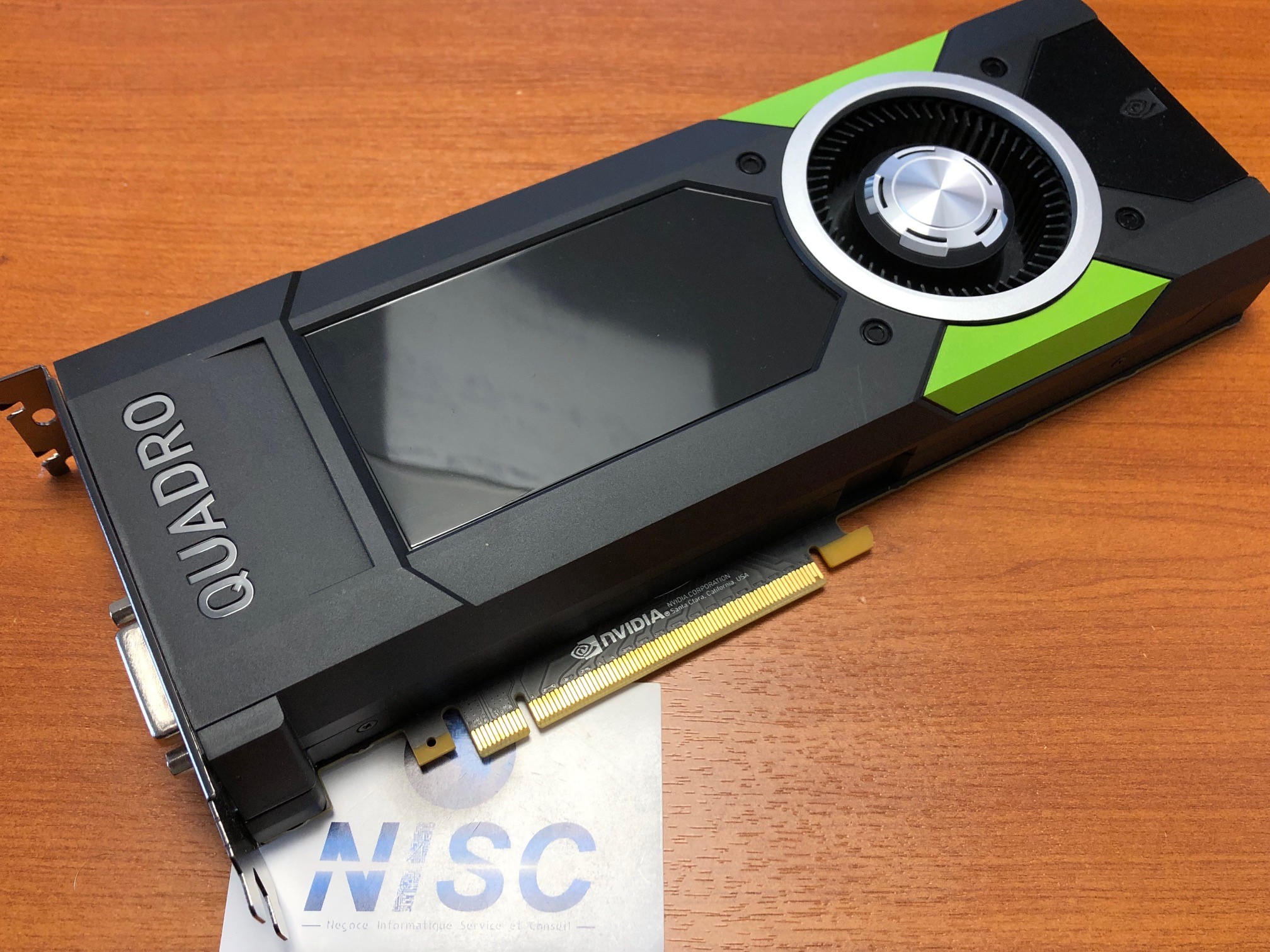

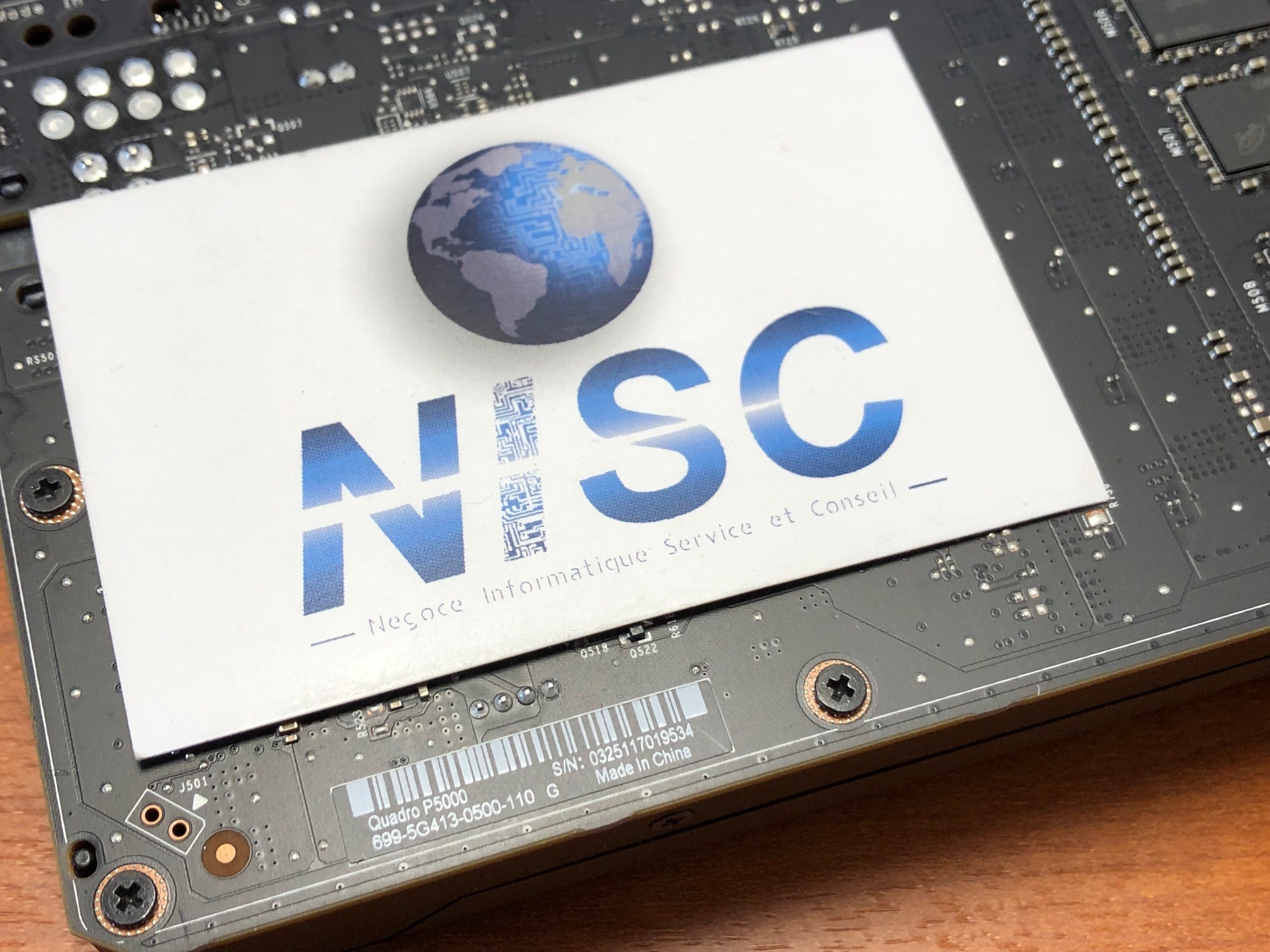

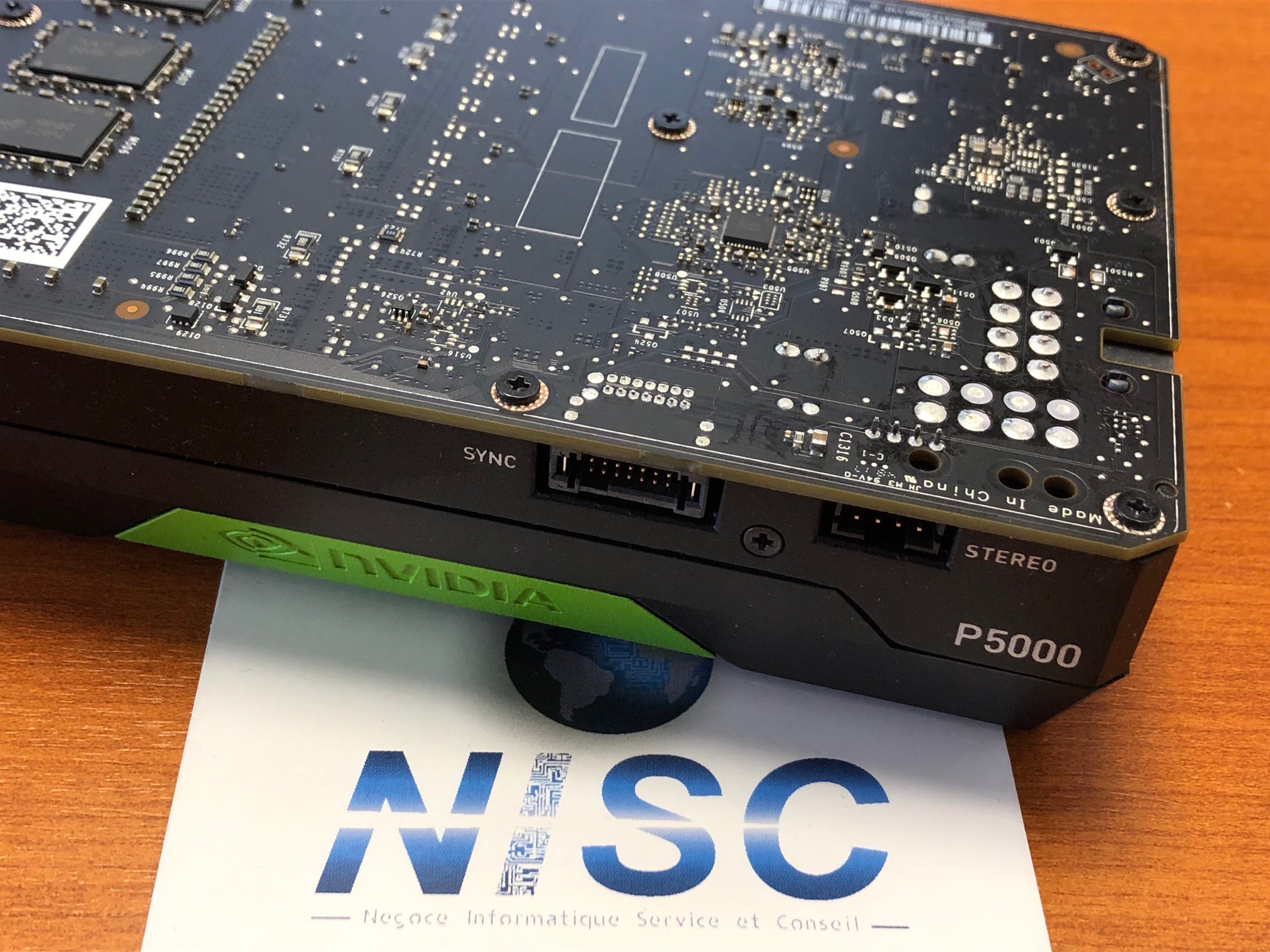

NVIDIA – Quadro P5000 – 16Go GDDR5X

FEATURES
> Four DisplayPort 1.4 Connectors
> DisplayPort with Audio
> VGA Support1

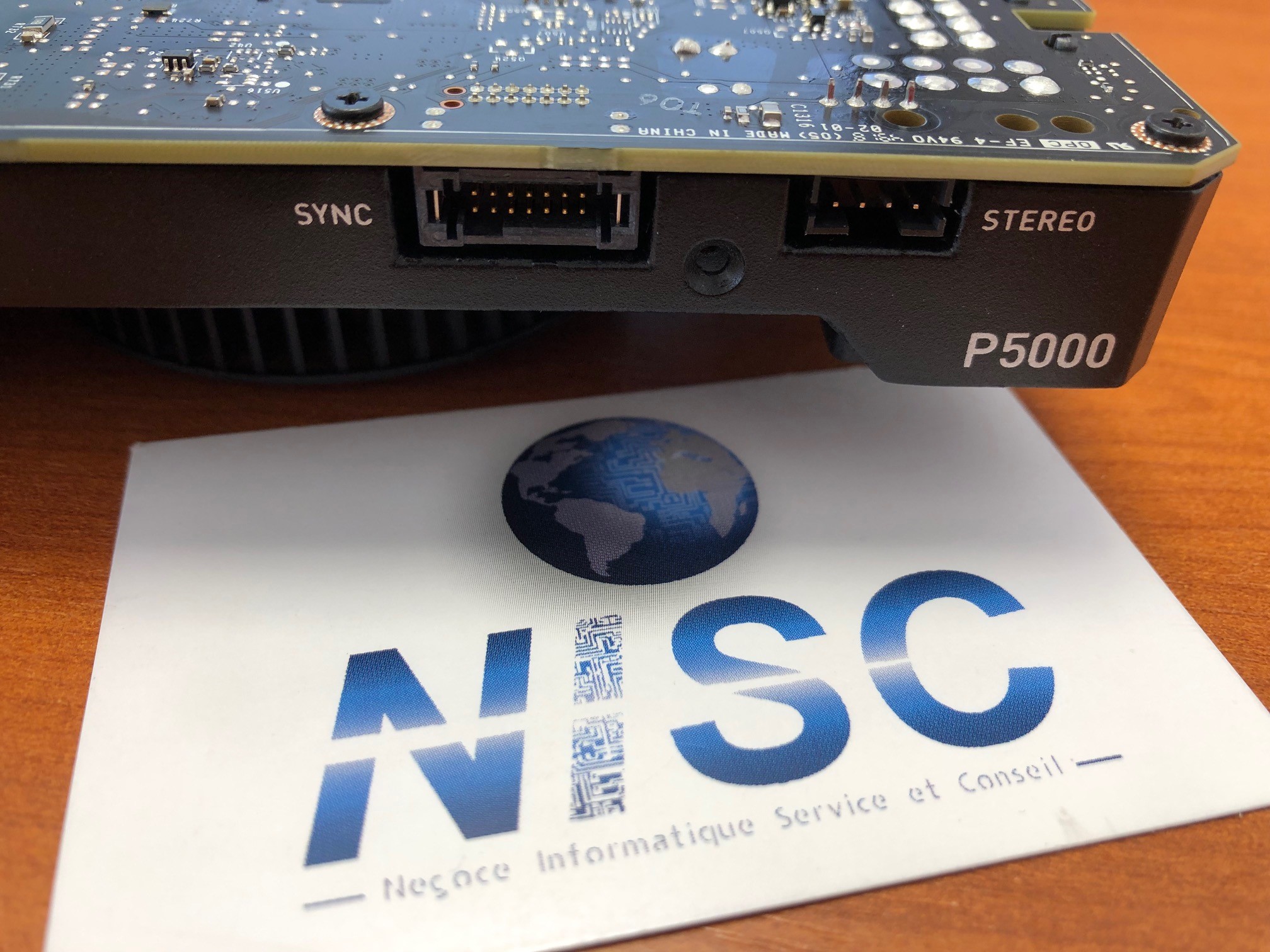

> 3D Stereo Support with Stereo Connector1
> NVIDIA GPUDirect™ Support
> Quadro Sync II2 Compatibility
> NVIDIA nView® Desktop Management Software Compatibility
> HDCP 2.2 Support
> NVIDIA Mosaic3
> Dedicated hardware video encode and decode engines4

SPECIFICATIONS
GPU Memory 16 GB GDDR5X
Memory Interface 256-bit
Memory Bandwidth Up to 288 GB/s
NVIDIA CUDA® Cores 2560

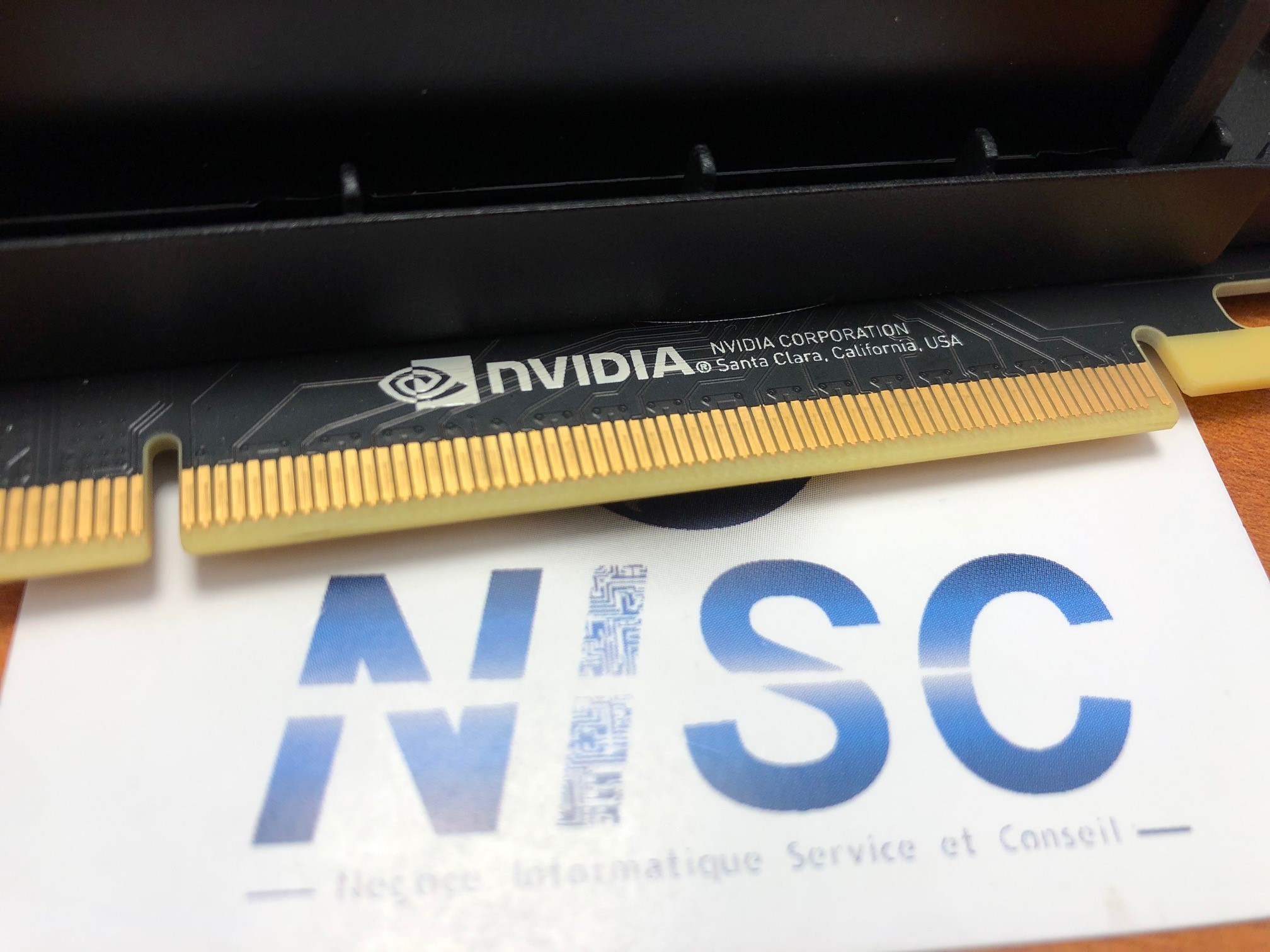

System Interface PCI Express 3.0 x16
Max Power Consumption 180 W
Thermal Solution Active
Form Factor 4.4” H × 10.5” L,
Dual Slot, Full Height

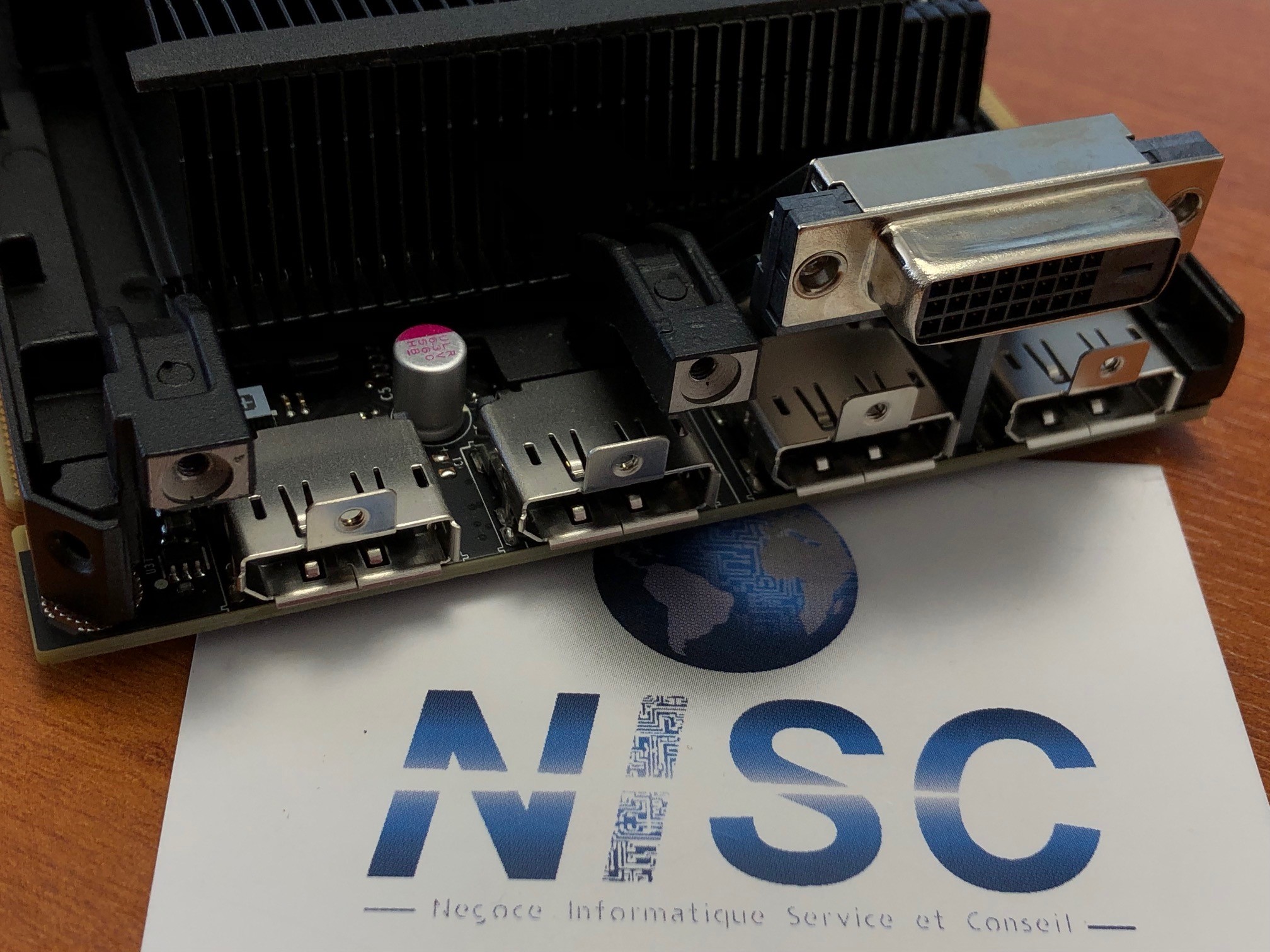

Display Connectors 4x DP 1.4 + DVI-D DL
Max Simultaneous Displays 4 direct, 4 DP 1.4
Multi-Stream
Max DP 1.4 Resolution 7680 x 4320 @ 30 Hz
Max DVI-D DL Resolution 2560 × 1600 @ 60 Hz
Graphics APIs Shader Model 5.1, OpenGL 4.55, DirectX 12.06, Vulkan 1.05
Compute APIs CUDA, DirectCompute,
OpenCL
